● Standard double din mounting size
● Compact user friendly design for easy access and
maintenance
● Fits standard Nano-ITX form factor boards
● Pico-ITX & SBC Boards installable with standoffs
● Fully ventilated with 40mm cooling fan
● Internal amplifier can be installed inside (optional)
● LCD frame can hold 7" Lilliput® and Mini-Touch lcd panels
● Color coded speaker wire harness available (optional)
Some double din dash kits may require 3-4 mm trimming to fit the LCD frame

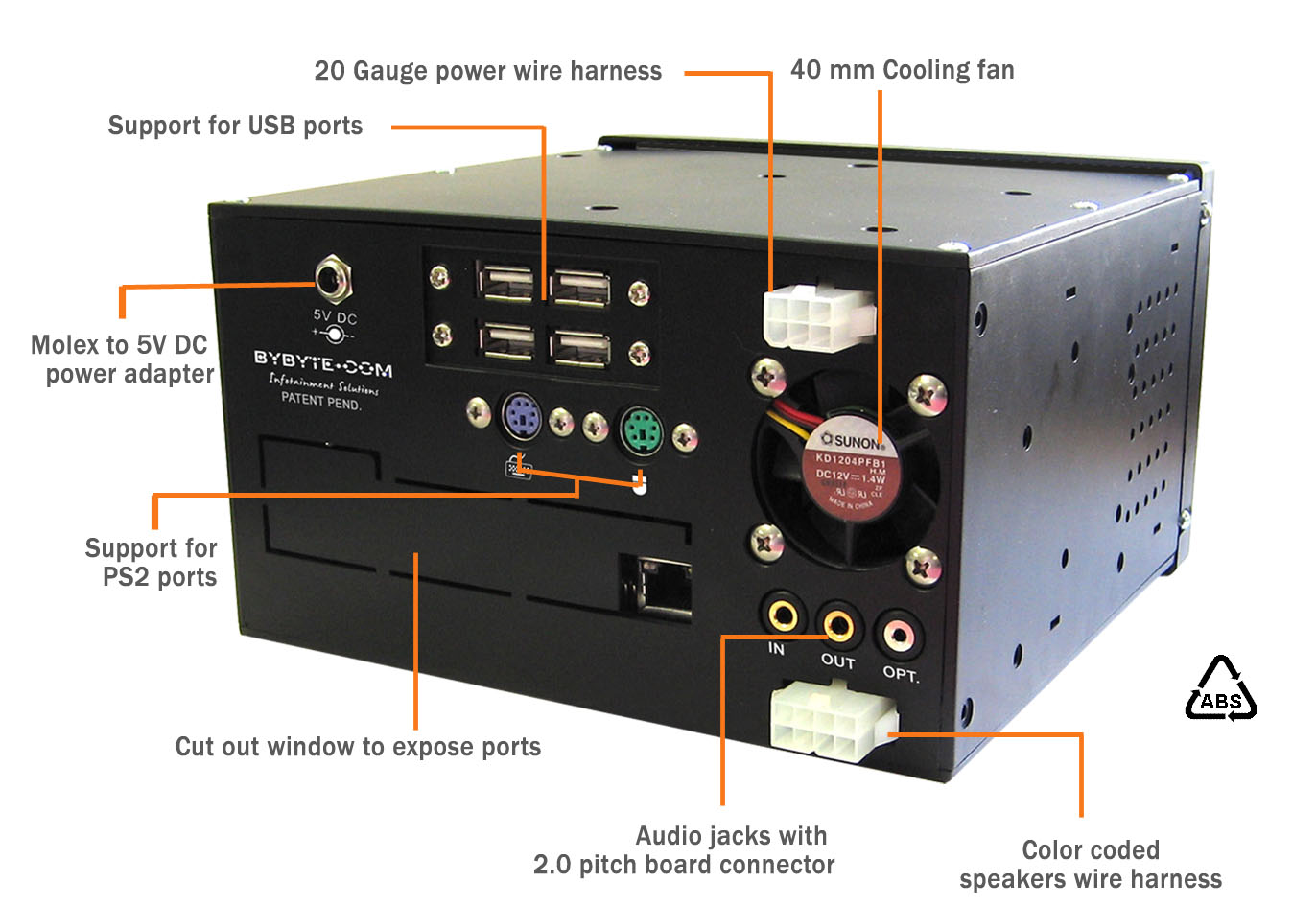

The Second Generation Black Box-N brings a robust solution for the Carputer enthusiasts willing to install their double din in dash infotainment system. Built of high resistance ABS plastic, this fully ventilated rugged enclosure provides secure support to the small from factor boards as well as the 7" LCD touch panels from Lilliput Electronics.
Fully customizable: The ABS plastic material makes it easy to add custom devices by drilling holes and adding adhesive standoffs on the desired positions. Its removable cut out window exposes fixed board ports
Recommended hardware
Motherboard
- Via Epia NX15000G
- Via Epia N1200EG
- Portwell Nano-8044 series board
- Contron SBC (Single Board Computer)
- Via Pico-ITX boards
Power Supply
Memory
LCD Screen
- Lilliput EBY701-NP/C/T
- Lilliput 629GL-70NP
Storage
- Intel X25 SSD
- Standard 2.5" SATA Hard Drive
